Card Edge Connectors(468861)

Image Product Number Pricing(USD) Quantity ECAD Quantity Available Weight(Kg) Mfr Series Package Product Status Operating Temperature Mounting Type Features Base Product Number Color Termination DataSheet RoHS Status Moisture Sensitivity Level (MSL) REACH Status Other Names ECCN HTSUS Standard Package Pitch Number of Rows Contact Finish Contact Finish Thickness Contact Material Contact Type Number of Positions Gender Card Type Number of Positions/Bay/Row Card Thickness Read Out Flange Feature Material - Insulation Termination Rows
396-048-540-103 EDAC Inc. 396-048-540-103 14.9660
RFQ
 ECAD 9959 0.00000000 EDAC Inc. 396 Box Active -40°C ~ 105°C Through Hole - 396-048 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-396-048-540-103 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 48 Female Non Specified - Single Edge 48 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 1
395-036-558-807 EDAC Inc. 395-036-558-807 13.4456
RFQ
 ECAD 3002 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole, Right Angle - 395-036 Black Solder download ROHS3 Compliant REACH Unaffected 151-395-036-558-807 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 36 Female Non Specified - Dual Edge 18 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, M3 Polyester Thermoplastic 2
845-038-523-808 EDAC Inc. 845-038-523-808 64.6224
RFQ
 ECAD 1344 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-038 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-038-523-808 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 38 Female Non Specified - Dual Edge 19 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP) 2
337-072-555-878 EDAC Inc. 337-072-555-878 17.7884
RFQ
 ECAD 9255 0.00000000 EDAC Inc. 337 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender, Card Guides 337-072 Green Solder Eyelet(s) download ROHS3 Compliant Not Applicable REACH Unaffected 151-337-072-555-878 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 72 Female Non Specified - Dual Edge 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 2
895-064-525-103 EDAC Inc. 895-064-525-103 144.4708
RFQ
 ECAD 7869 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole - 895-064 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-064-525-103 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 64 Female Non Specified - Single Edge 64 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyphenylene Sulfide (PPS) 1
345-036-520-803 EDAC Inc. 345-036-520-803 11.2220
RFQ
 ECAD 4765 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-036 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-036-520-803 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 36 Female Non Specified - Dual Edge 18 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2
333-022-556-803 EDAC Inc. 333-022-556-803 11.0644
RFQ
 ECAD 5503 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 333-022 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-022-556-803 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 22 Female Non Specified - Dual Edge 11 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2
346-023-522-101 EDAC Inc. 346-023-522-101 7.5752
RFQ
 ECAD 1391 0.00000000 EDAC Inc. 346 Box Active -40°C ~ 105°C Through Hole - 346-023 Green Solder download ROHS3 Compliant REACH Unaffected 151-346-023-522-101 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 23 Female Non Specified - Single Edge 23 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single - Polyester Thermoplastic 1
842-048-542-204 EDAC Inc. 842-048-542-204 65.9136
RFQ
 ECAD 1679 0.00000000 EDAC Inc. 842 Box Active -40°C ~ 125°C Through Hole - 842-048 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-842-048-542-204 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 48 Female Non Specified - Dual Edge 24 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Diallyl Phthalate (DAP) 2
345-022-523-607 EDAC Inc. 345-022-523-607 12.6788
RFQ
 ECAD 3789 0.00000000 EDAC Inc. 345 Box Active -40°C ~ 105°C Through Hole - 345-022 Green Solder download ROHS3 Compliant REACH Unaffected 151-345-022-523-607 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 22 Female Non Specified - Single Edge 22 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, M3 Polyester Thermoplastic 1
396-011-558-608 EDAC Inc. 396-011-558-608 13.7076
RFQ
 ECAD 2338 0.00000000 EDAC Inc. 396 Box Active -40°C ~ 105°C Through Hole, Right Angle - 396-011 Black Solder, Wire Wrap download ROHS3 Compliant REACH Unaffected 151-396-011-558-608 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 11 Female Non Specified - Single Edge 11 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
846-034-540-858 EDAC Inc. 846-034-540-858 -
RFQ
 ECAD 6175 0.00000000 EDAC Inc. 846 Box Obsolete -40°C ~ 125°C Through Hole Card Guides 846-034 Green Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-846-034-540-858 EAR99 8536.69.4040 25 0.125" (3.18mm) 2 Gold - Copper Alloy - 34 Female Non Specified - Dual Edge 17 0.062" (1.57mm) Dual Top Mount Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP)
357-086-558-204 EDAC Inc. 357-086-558-204 19.4120
RFQ
 ECAD 3649 0.00000000 EDAC Inc. 357 Box Active -40°C ~ 105°C Through Hole, Right Angle - 357-086 Black Solder, Wire Wrap download ROHS3 Compliant REACH Unaffected 151-357-086-558-204 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 86 Female Non Specified - Dual Edge 43 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia Polyester Thermoplastic 2
395-067-544-108 EDAC Inc. 395-067-544-108 17.2104
RFQ
 ECAD 6122 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole - 395-067 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-395-067-544-108 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 67 Female Non Specified - Single Edge 67 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyester Thermoplastic 1
387-032-523-803 EDAC Inc. 387-032-523-803 13.5024
RFQ
 ECAD 2440 0.00000000 EDAC Inc. 387 Box Active -40°C ~ 105°C Through Hole - 387-032 Black Solder download ROHS3 Compliant REACH Unaffected 151-387-032-523-803 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 32 Female Non Specified - Dual Edge 16 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 2
833-042-524-212 EDAC Inc. 833-042-524-212 51.5024
RFQ
 ECAD 1827 0.00000000 EDAC Inc. 833 Box Active -40°C ~ 125°C Through Hole - 833-042 Green Solder download ROHS3 Compliant REACH Unaffected 151-833-042-524-212 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 42 Female Non Specified - Dual Edge 21 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2
395-090-523-512 EDAC Inc. 395-090-523-512 14.2168
RFQ
 ECAD 4925 0.00000000 EDAC Inc. 395 Box Active -40°C ~ 105°C Through Hole - 395-090 Black Solder download ROHS3 Compliant REACH Unaffected 151-395-090-523-512 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 90 Female Non Specified - Dual Edge 45 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 2

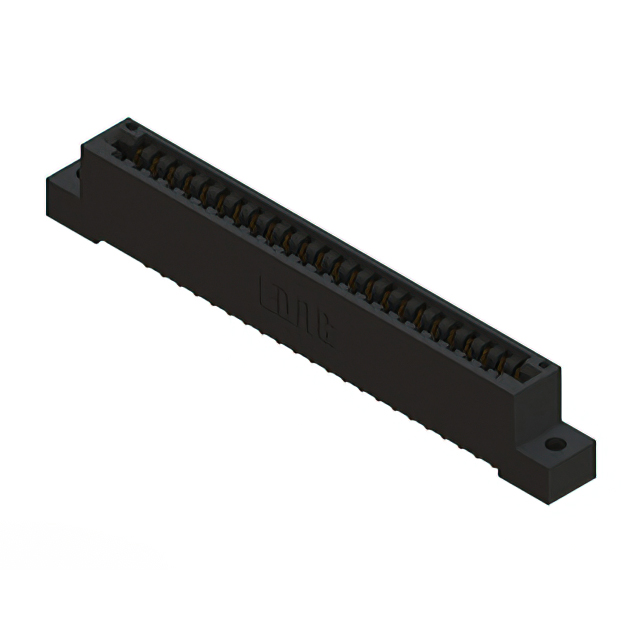

896-024-500-102 EDAC Inc. 896-024-500-102 76.1984
RFQ
 ECAD 6321 0.00000000 EDAC Inc. 896 Bulk Active -40°C ~ 125°C Through Hole - 896-024 Black Solder Eyelet(s) download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-896-024-500-102 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 24 Female Non Specified - Single Edge 24 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia Polyphenylene Sulfide (PPS) 1
333-006-523-603 EDAC Inc. 333-006-523-603 7.1032
RFQ
 ECAD 2180 0.00000000 EDAC Inc. 333 Box Active -40°C ~ 105°C Through Hole - 333-006 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-333-006-523-603 EAR99 8536.69.4040 25 0.156" (3.96mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 6 Female Non Specified - Single Edge 6 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 1

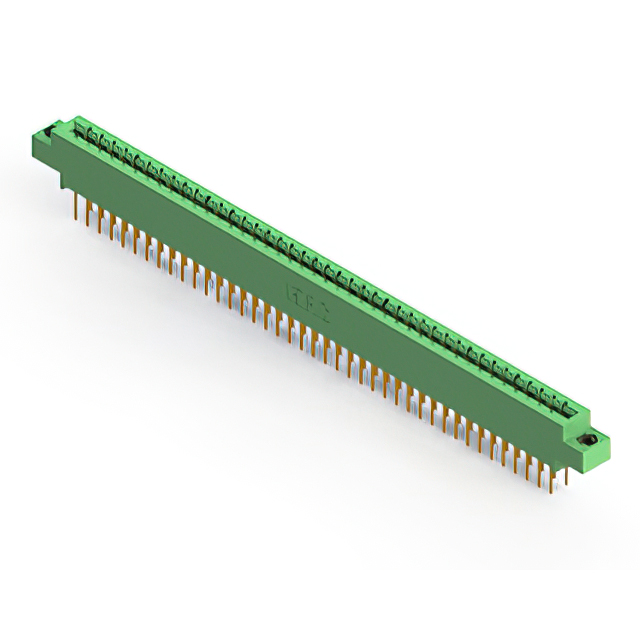

833-082-540-808 EDAC Inc. 833-082-540-808 78.4352
RFQ
 ECAD 2805 0.00000000 EDAC Inc. 833 Box Active -40°C ~ 125°C Through Hole - 833-082 Green Wire Wrap download ROHS3 Compliant REACH Unaffected 151-833-082-540-808 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 82 Female Non Specified - Dual Edge 41 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP) 2

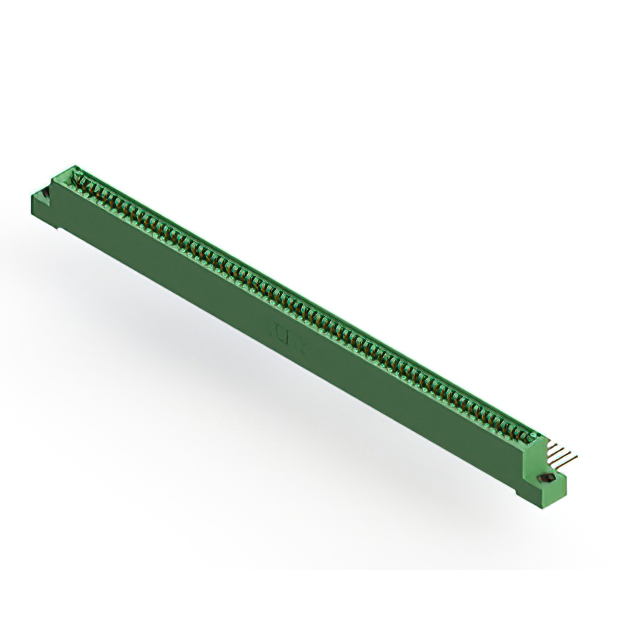

845-066-559-107 EDAC Inc. 845-066-559-107 165.0412
RFQ
 ECAD 6718 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole, Right Angle - 845-066 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-066-559-107 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 66 Female Non Specified - Single Edge 66 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, M3 Diallyl Phthalate (DAP) 1
892-029-558-108 EDAC Inc. 892-029-558-108 126.4720
RFQ
 ECAD 4859 0.00000000 EDAC Inc. 892 Bulk Active -40°C ~ 125°C Through Hole, Right Angle - 892-029 Black Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-892-029-558-108 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 29 Female Non Specified - Single Edge 29 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Top Opening, Threaded Insert, 4-40 Polyphenylene Sulfide (PPS) 1

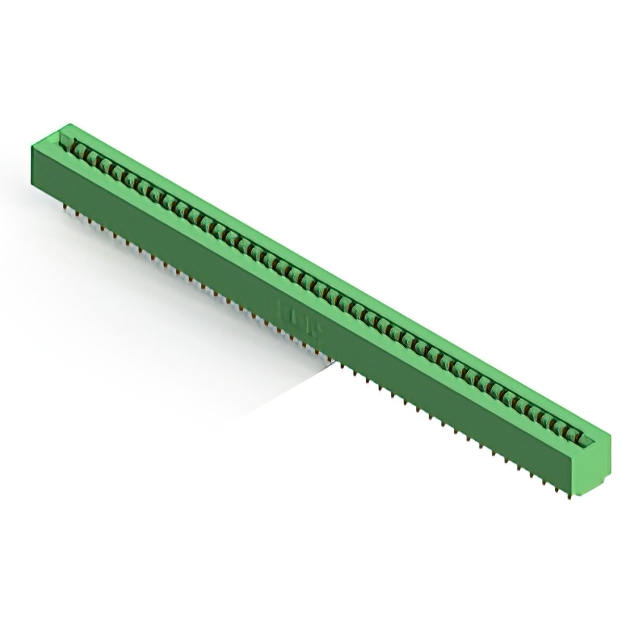

307-082-556-201 EDAC Inc. 307-082-556-201 19.3184
RFQ
 ECAD 9993 0.00000000 EDAC Inc. 307 Box Active -40°C ~ 105°C Board Edge, Straddle Mount Card Extender 307-082 Green Solder download ROHS3 Compliant Not Applicable REACH Unaffected 151-307-082-556-201 EAR99 8536.69.4040 25 0.156" (3.96mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Semi Bellows 82 Female Non Specified - Dual Edge 41 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Polyester Thermoplastic 2
845-072-556-512 EDAC Inc. 845-072-556-512 94.7364
RFQ
 ECAD 2897 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 845-072 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-072-556-512 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 72 Female Non Specified - Dual Edge 36 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2
845-060-500-508 EDAC Inc. 845-060-500-508 135.3712
RFQ
 ECAD 7013 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Through Hole - 845-060 Green Solder Eyelet(s) download ROHS3 Compliant REACH Unaffected 151-845-060-500-508 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 60 Female Non Specified - Dual Edge 30 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Top Mount Opening, Threaded Insert, 4-40 Diallyl Phthalate (DAP) 2
396-012-540-103 EDAC Inc. 396-012-540-103 10.7564
RFQ
 ECAD 9391 0.00000000 EDAC Inc. 396 Box Active -40°C ~ 105°C Through Hole - 396-012 Black Wire Wrap download ROHS3 Compliant REACH Unaffected 151-396-012-540-103 EAR99 8536.69.4040 25 0.125" (3.18mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 12 Female Non Specified - Single Edge 12 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia Polyester Thermoplastic 1
845-138-556-512 EDAC Inc. 845-138-556-512 138.0960
RFQ
 ECAD 3947 0.00000000 EDAC Inc. 845 Box Active -40°C ~ 125°C Board Edge, Straddle Mount Card Extender 845-138 Green Solder download ROHS3 Compliant REACH Unaffected 151-845-138-556-512 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 138 Female Non Specified - Dual Edge 69 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Diallyl Phthalate (DAP) 2
892-036-540-201 EDAC Inc. 892-036-540-201 57.0624
RFQ
 ECAD 6667 0.00000000 EDAC Inc. 892 Bulk Active -40°C ~ 125°C Through Hole - 892-036 Black Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-892-036-540-201 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 36 Female Non Specified - Dual Edge 18 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual - Polyphenylene Sulfide (PPS) 2
345-051-525-602 EDAC Inc. 345-051-525-602 14.8612
RFQ
 ECAD 9207 0.00000000 EDAC Inc. 345 Bulk Active -40°C ~ 105°C Through Hole - 345-051 Green Solder download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-345-051-525-602 EAR99 8536.69.4040 25 0.100" (2.54mm) 1 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 51 Female Non Specified - Single Edge 51 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Single Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia Polyester Thermoplastic 1
895-034-542-208 EDAC Inc. 895-034-542-208 60.9524
RFQ
 ECAD 9778 0.00000000 EDAC Inc. 895 Bulk Active -40°C ~ 125°C Through Hole - 895-034 Black Wire Wrap download ROHS3 Compliant 1 (Unlimited) REACH Unaffected 151-895-034-542-208 EAR99 8536.69.4040 25 0.100" (2.54mm) 2 Gold 10.0µin (0.25µm) Copper Alloy Cantilever 34 Female Non Specified - Dual Edge 17 0.054" ~ 0.070" (1.37mm ~ 1.78mm) Dual Flush Mount, Top Opening, Threaded Insert, 4-40 Polyphenylene Sulfide (PPS) 2
